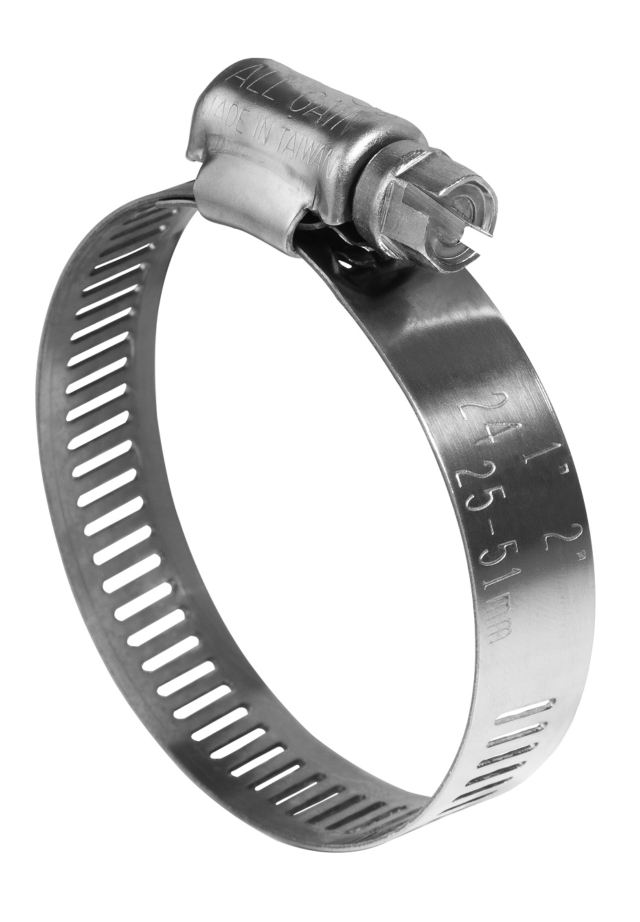

Worm Drive Hose Clamp
Detail Specifications / Descriptions
| Worm
Drive Hose Clamps | ||||||||
| Diameter
Range | Packing / CTN | |||||||
| No. | Inch | mm | Galvanized | AISI
430 | AISI
304 | pcs | G.W. | cu.ft. |
| Min.
to Max. | Min.
to Max. | |||||||
| Mini
clamp with 8mm wide band | ||||||||
| 4 | 7/32"-5/8" | 6-16 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
| 6 | 7/16"-3/4" | 11-20 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
| 8 | 1/2"-7/8" | 13-23 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
| 10 | 1/2"-1 | 13-25 | 0.6 | 0.6 | 0.5 | 2000 | 14.7 | 0.85 |
| Regular
clamp with 12.7mm or 14.2mm band | ||||||||
| 4 | 3/8"-25/32" | 10-20 | 0.7 | 0.65 | 0.6 | 1,000 | 18.7 | 1.3 |
| 6 | 3/8"-7/8" | 10-22 | 0.7 | 0.65 | 0.6 | 1,000 | 19.0 | 1.3 |
| 8 | 7/16"-1" | 11-25 | 0.7 | 0.65 | 0.6 | 1,000 | 19.3 | 1.3 |
| 10 | 9/16"-1
1/16" | 14-27 | 0.7 | 0.65 | 0.6 | 1,000 | 19.5 | 1.3 |
| 12 | 1
1/16"-1 1/4" | 18-32 | 0.7 | 0.65 | 0.6 | 1,000 | 20 | 1.3 |
| 16 | 1
3/16"-1 1/2" | 21-38 | 0.7 | 0.65 | 0.6 | 1,000 | 21.1 | 1.7 |
| 20 | 1
3/16"-1 3/4" | 21-44 | 0.7 | 0.65 | 0.6 | 1,000 | 23.2 | 2.1 |
| 24 | 1
1/16"-2" | 27-51 | 0.7 | 0.65 | 0.6 | 1,000 | 24.3 | 2.3 |
| 28 | 1
5/16"-2" 1/4" | 33-57 | 0.7 | 0.65 | 0.6 | 1,000 | 27.4 | 2.8 |
| 32 | 1
9/16"-2" 1/2" | 40-63 | 0.7 | 0.65 | 0.6 | 1,000 | 29.6 | 3.2 |
| 36 | 1
13/16"-2" 3/4" | 46-70 | 0.7 | 0.65 | 0.6 | 1,000 | 31.7 | 3.8 |
| 40 | 2
1/16"-3" | 52-76 | 0.7 | 0.65 | 0.6 | 500 | 17.2 | 2.3 |
| 44 | 2
5/16"-3 1/4" | 59-82 | 0.7 | 0.65 | 0.6 | 500 | 18.3 | 2.5 |
| 48 | 2
9/16"-3 1/2" | 65-89 | 0.7 | 0.65 | 0.6 | 500 | 18.4 | 2.8 |
| 52 | 2
13/16"-3 3/4" | 72-95 | 0.7 | 0.65 | 0.6 | 500 | 19.5 | 3.0 |
| 56 | 3
1/16"-4" | 78-101 | 0.7 | 0.65 | 0.6 | 500 | 19.6 | 3.2 |
| 60 | 3
5/16"-4 1/4" | 84-108 | 0.7 | 0.65 | 0.6 | 500 | 21.4 | 3.2 |
| 64 | 3
9/16"-4 1/2" | 91-114 | 0.7 | 0.65 | 0.6 | 500 | 21.5 | 3.2 |
| 72 | 4
1/8"-5" | 105-127 | 0.7 | 0.65 | 0.6 | 250 | 12.0 | 3.2 |
| 80 | 4
5/8"-5 1/2" | 118-140 | 0.7 | 0.65 | 0.6 | 250 | 13.0 | 3.9 |
| 88 | 5
1/8"-6" | 130-152 | 0.7 | 0.65 | 0.6 | 250 | 14.0 | 4.5 |
| 96 | 5
5/8"-6 1/2" | 143-165 | 0.7 | 0.65 | 0.6 | 250 | 15.0 | 4.5 |
| 104 | 6
1/8"-7" | 155-178 | 0.7 | 0.65 | 0.6 | 250 | 16.0 | 4.5 |
Materials:
AG: Completely Zinc-coated Steel
AM: Band--AISI430 Housing--AISI430 With Palted Screw
A4: Band--AISI430 Housing--AISI430 With Screw--AISI410
AN: Band--AISI304 Housing--AISI430 Palted Screw
A3: Band--AISI304 Housing--AISI304 Screw--AISI302
A3 is Used
for Marine, Underground, and other
High Corrosive Applications
